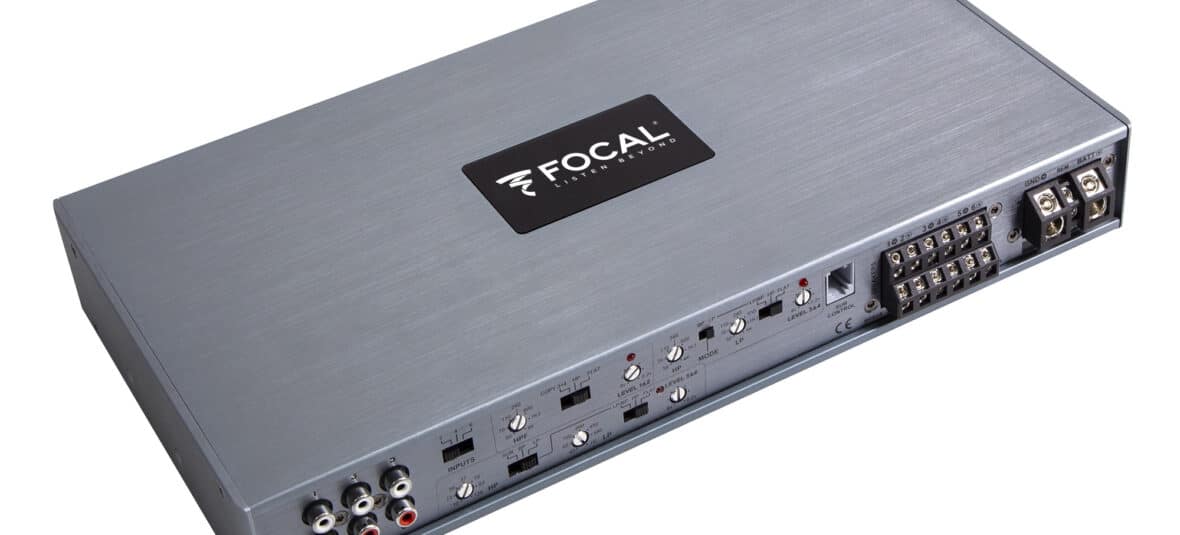

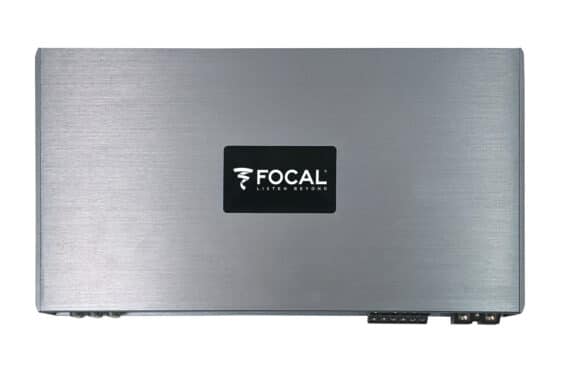

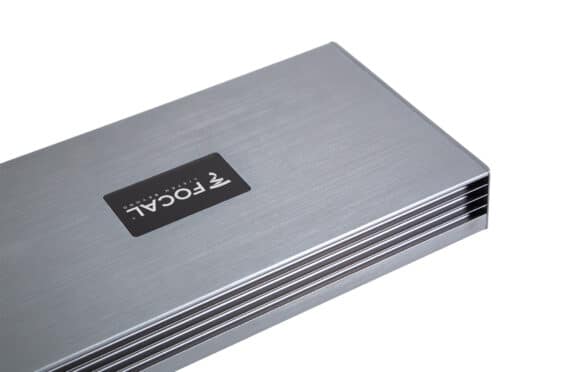

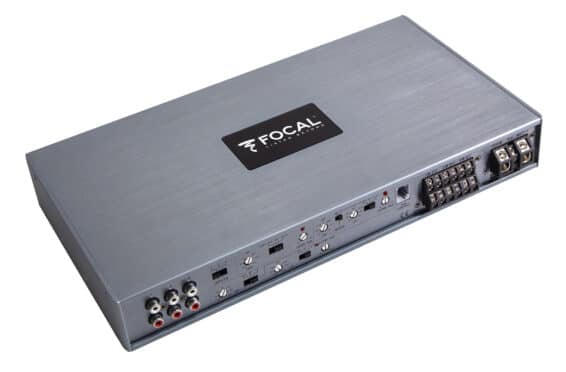

FDP 6.900 V2
Details:
- Product Line:
- Archive, Archived Amplifiers
- Download:
- Specsheet (PDF)
6-Channel Amplifier
Full Range Class D
View/Download
Advantages:
- Very small size for power output
- Can be used in 3, 4, 5 & 6 channel modes
- High-level input, compatible with OEM Stereo

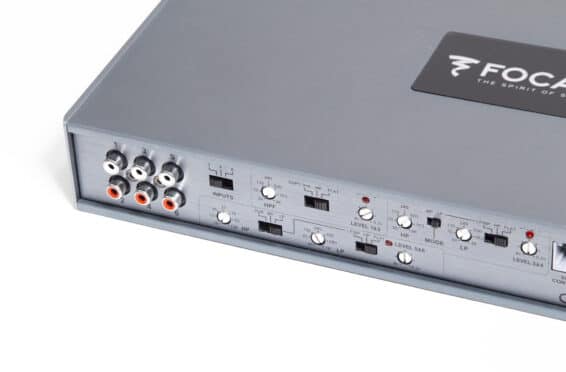

- Easily accessible settings
- Remote sub control
- Invisible mounting bracket
- Highest level of crossover flexibility
Details:
- RCA input can use a BTL source or common ground source. RCA switch select balanced floating ground or grounded to minimize noise.
- Each input has a peak limiter to prevent severe distortion and
- speaker damage. It allows light clipping.
- Each channel has variable high pass crossover: 50 Hz to 4000 Hz, 12 dB Linkwitz-Riley
- Each channel has variable low pass crossover: 50 Hz to 4000 Hz, 12 dB Linkwitz-Riley
- Each channel has variable band pass crossover: 50 Hz to 4000 Hz, 12 dB Linkwitz-Riley
- Channels 5, 6 in bridged subwoofer mode , 24 dB Linkwitz-Riley Subwoofer remote volume control includes a clipping indicator light. Recommended DC voltage operating range 11.5 to 14.4 volts. Minimum DC voltage operating range 8 to 16 volts.
- Install an 80 AMP fuse at the battery.
Specifications:
| Power |
|
|---|---|
| Frequency response | 5Hz–25kHz |
| Signal/noise ratio | 90dB |
| Input Sensitivity | 200mV + 10V |
| Slew Rate | 13 V/ uS |
| Weight | 8 Pounds |
| Dimensions (HxLxD): | 2 x 14-3/8 x 7-3/4 in (50 x 364 x 196mm) |
| Protections | Short-circuit, thermal overload, polarity reversal, DC |
