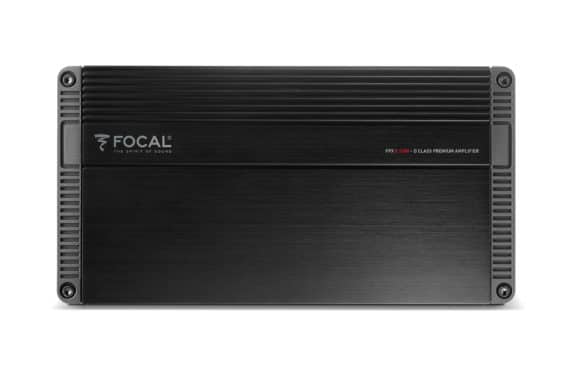

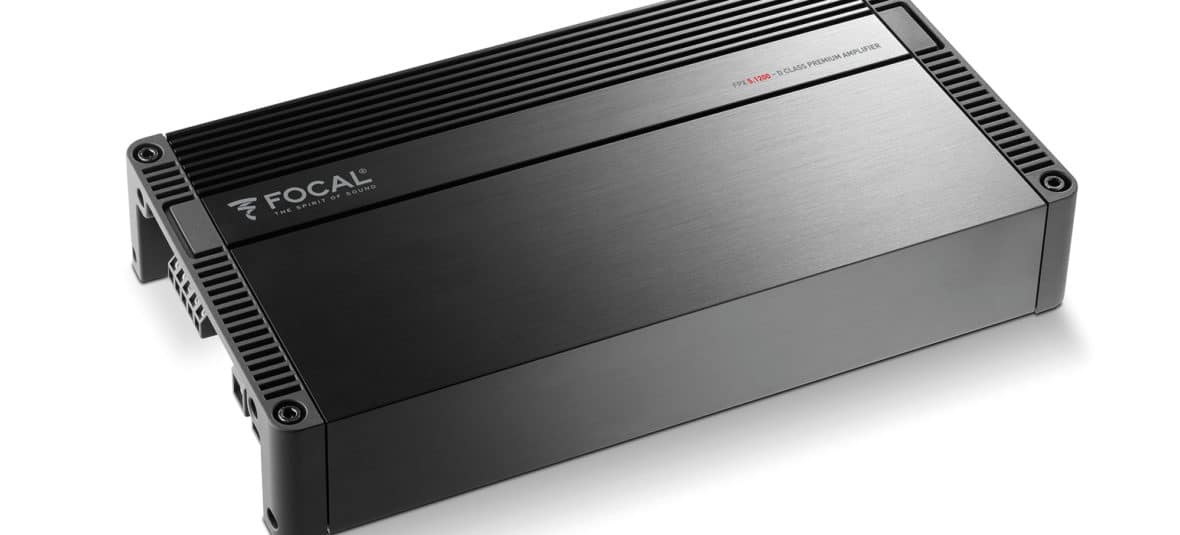

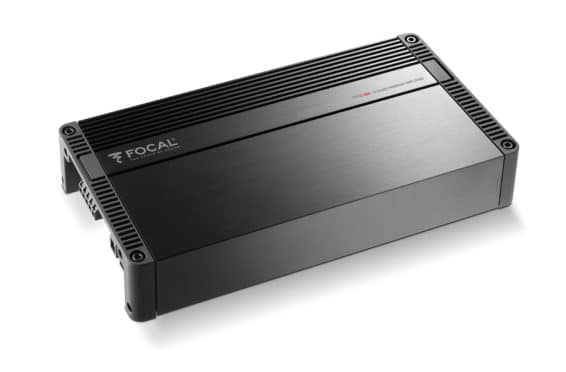

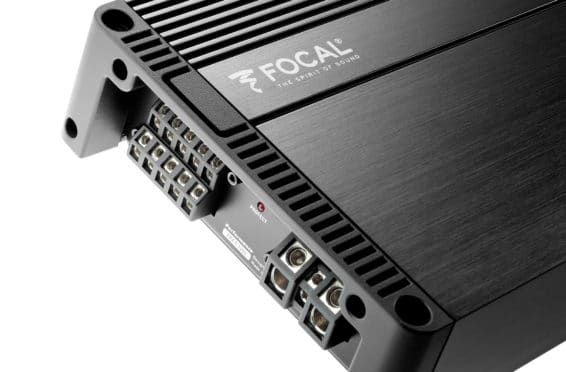

FPX 5.1200
Details:
- Product Line:
- Archive, Archived Amplifiers
- Download:
- Infosheet (PDF)
- Download:
- Specsheet (PDF)
5/4/3-Channel Amplifier
D Class Premium Amplifier
Advantages:

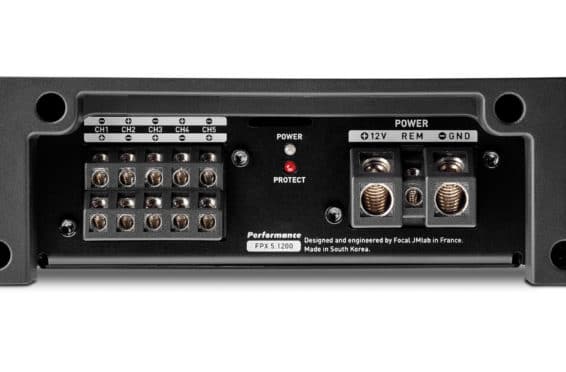

- D Class amplifier: 5 output channels
- 2 Ohm Stable
- High power and dynamic reserve (1 200W max)
- Audio Mos-Fets – Optimized efficiency
- Subwoofer remote control supplied
Specifications:
| CEA Power (4 Ohms) | 4×75 Wrms + 1×420 Wrms |
|---|---|
| Maximum Power (2 Ohms) | 4x120Wrms + 1×720 Wrms |
| Maximum Power (Ch 1-4 bridged at 4 Ohms + Ch 5 at 2 Ohms) | 2x240Wrms + 720 Wrms |
| Bandwidth | 10Hz–20kHz |
| Total Harmonic Distortion | 0.03% |
| SNR (1W/A) | 75 dBA |

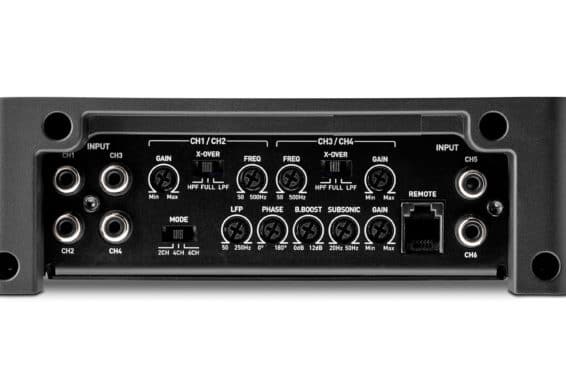

| Low-Pass Filter Ch 1-4 | 50Hz-500Hz |
| Ch 5 (Subwoofer): Subsonic Filter (High-pass) | 10Hz-50Hz+ |
| Ch 5 (Subwoofer): Low-pass filter | 50Hz-250Hz |
| Ch 5 Bass Boost | 45Hz / 0 to 12dB |
| Phase adjustable from 0 to 180° | For channel 5 |
| Copy Mode: | (6 CH / 4 CH / 2 CH) |
| Full Range Mode: | |
| Protections | Short Circuit, low impedance, reversal of polarity, DC, power drop, heat protection |
| Weight | 9lbs (4.1kg) |
| Dimensions(HxLxD) | 13-17/64″ x 2-1/4″ x 6-57/64″ (337 x 175 x 57mm) |
